Round Bucket Mould

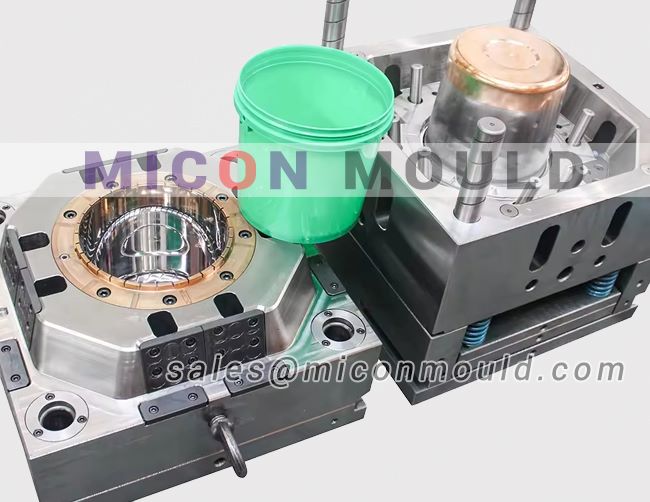

Bucket mould is one of our most important plastic injection mould, our bucket mould includes plastic bucket mould, paint bucket mould, thin wall bucket mould, packing bucket mould, plastic barrel mould and other bucket molds.

We are specialized in making plastic bucket mould, paint bucket mould, 0.5L, 1L, 1.5L, 2L, 3L, 4L, 5L, 7L, 10L, 12L, 15L, 18L, 20L, 25L bucket mould, BeCu for cooling, fine cooling system, full automaticity. With rich experience and good price in making bucket moulds.

Firstly, Mould Design and Structure

A high-quality mold structure is a premise for a qualified mold before manufacturing.We attach great importance to analyze mold structure, including demolding draft angle, the epitome of product surface, gating system design, exhaust design, cooling system design etc.The main problems that may easily occur will through trial and error during the mold structure design.

Second, the Mould Steel

In order to improve the mold life and product quality, we increase the mold steel hardness through heat treatment. The steels we commonly use are P20(28-34HRC), 718H(35-39HRC), H13(48-52HRC) etc.to prevent mold eccentric, we use whole piece of steel to make the bucket. The cooling system is very important. We adopt single loop cooling way and setup even distribution water channels as much as possible. To enhance the cooling effect, BeCu can be inserted on the core and cavity.

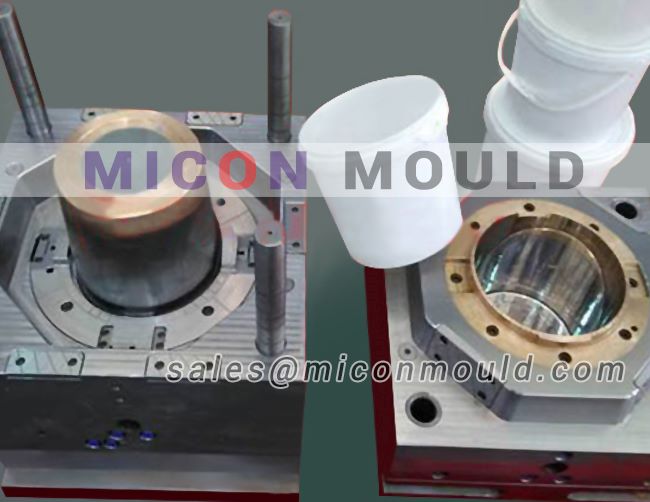

Our bucket moulds use air assistance,stripper plate and centre ejector for demolding (release in two steps).In order to increase cooling performance, there also have water channels in the centre. All small sliders will be nitrided to increase the hardenss.

It is important to keep maintenance for the moulds. We should check and make sure the the water channels and air circuit unlocked. Add lubricant oil for the siliders, regularly clean the stripper plate and centre ejector.

Third, the Mould Cooling system

Cooling system design is a relatively cumbersome work, namely to consider the uniformity of the cooling and the cooling effect, also the impact brings to the overall mold structure, determining the exact location and size of the cooling system; and cooling for key positions such as moving plate or the inserts, side sliders as well as side cores;standard cooling element design and the selection of the cooling standard components. Micon plastic mould analyzes all series of factors when begin to start the mold design. The mold has recycled water to flow in every part of it which reduces the cooling time, improves the production efficiency and greatly reduces products costs.

paint bucket mould

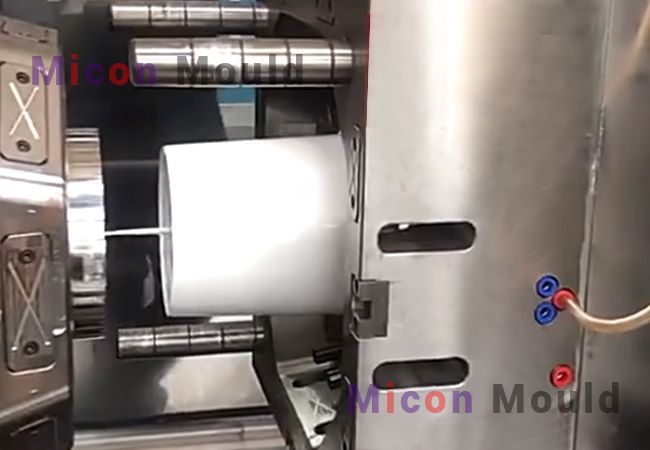

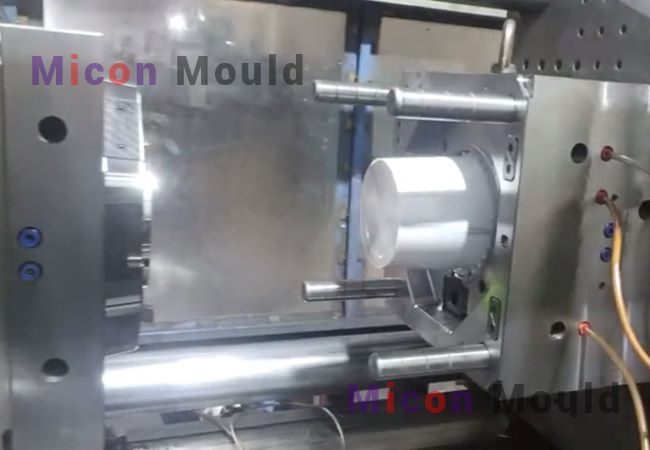

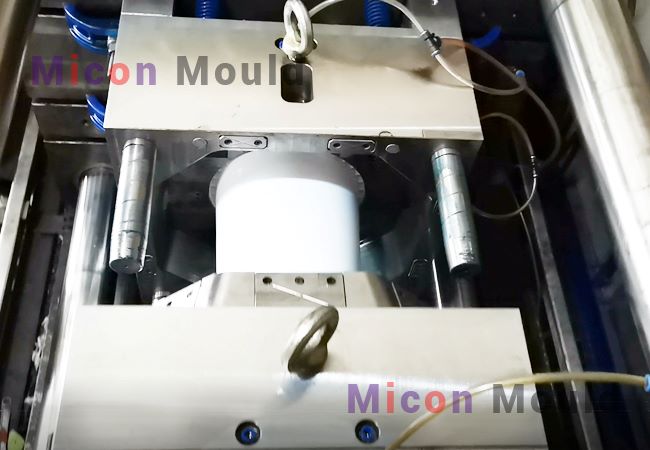

Bucket Mould Manufacture

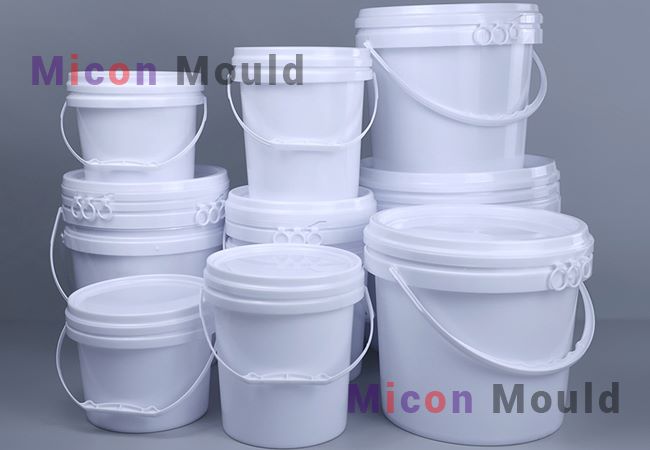

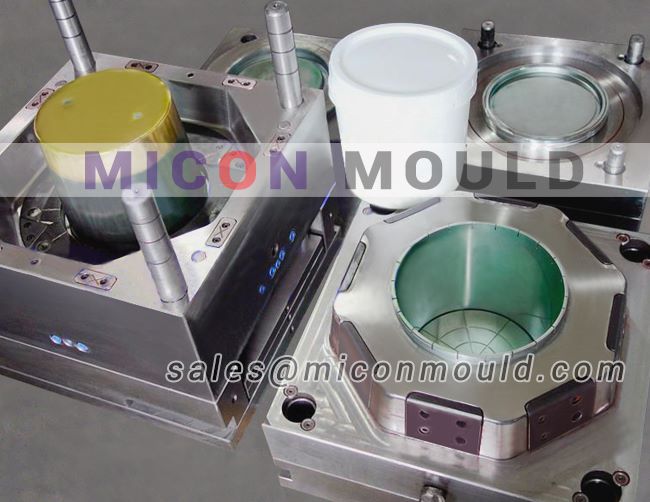

Paint Bucket Mould

Paint bucket mold is one of the types of bucket molds. It has a wide range of uses and is a general term for packaging barrels, not only for packaging paint, but also for packaging other items. The production of paint buckets is very large, so it is required that the quality of bucket molds be good. The paint bucket mold needs to have high precision to ensure that the produced buckets will not leak during transportation.

Bucket Mould Manufacturer

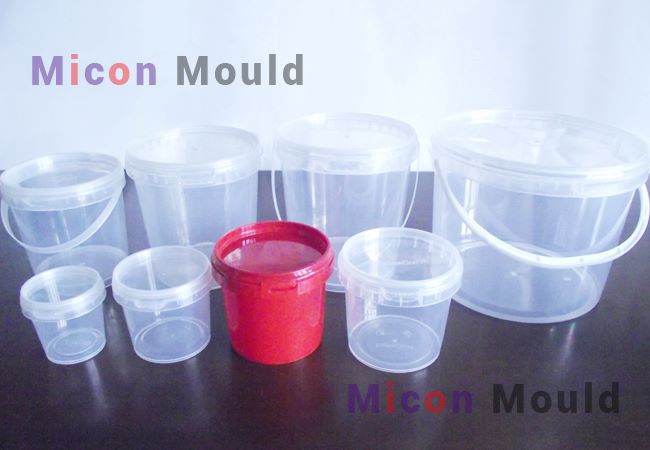

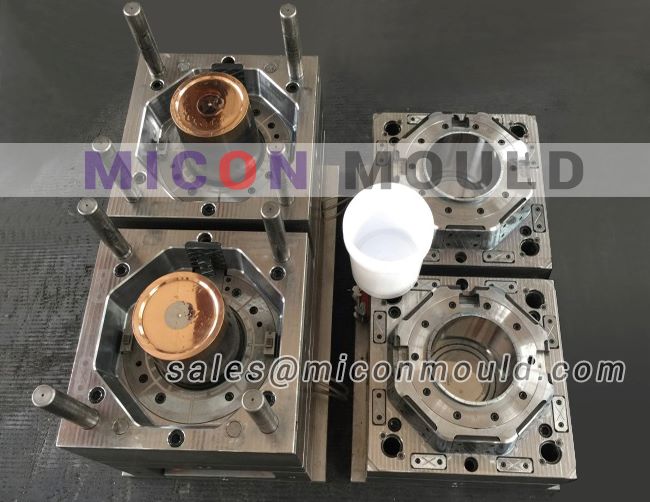

Plastic Bucket Mould

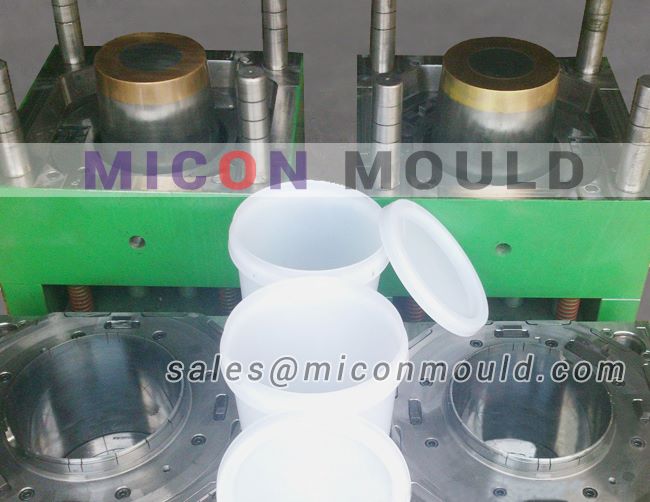

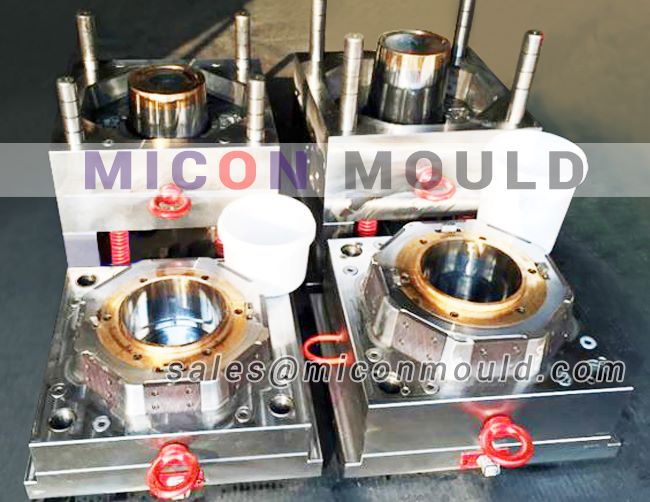

Plastic buckets are very common in packaging, whether it's liquids or food. Because the bucket or lid has tamper proof function, it ensures the safety of internal items very well. We can manufacture single cavity or multi cavity bucket molds ranging from 0.5L to 20L, with high concentricity and fully automated production. They are also suitable for in mold labeling.

plastic bucket mould
bucket mold
bucket mould
plastic bucket mold
plastic bucket mould
bucket moulds
bucket molds
plastic bucket mould
plastic bucket mould
bucket mould
bucket mould
bucket mould

Get a Quote

Frequently Asked Questions?

Plastic bucket mould is a type of mould used in manufacturing to create plastic buckets. It is a form or shape into which molten plastic material is poured and then allowed to cool and solidify. The mould is typically made of metal, usually mould steel, and consists of two halves that fit together to form the shape of the bucket. When the plastic has cooled and solidified, the mold is opened and the bucket is removed.
The typical lifespan of a bucket mold can vary depending on various factors, including the material used, mold design, production conditions, and maintenance practices. However, a well-constructed and properly maintained steel bucket mold can typically last tens of thousands to hundreds of thousands of cycles. Factors such as material quality, mold design, operating conditions, and regular maintenance play crucial roles in determining the mold’s longevity. Regular inspection, maintenance, and timely repairs or replacements can help maximize the mold’s lifespan.
First, during the mold design process, it is necessary to check the insert, slider, exhaust, gate, shrink, bucket wall thickness, mould structure and other information. Secondly, during the mould manufacture process, check the hardness of the mould material and control the processing tolerance. Thirdly, after the mould trial is successful, check the weight of the bucket and the fit of the bucket cover. Provide customers with a high-quality bucket mould.
Our bucket molds are usually suitable for in mold labeling. If in mold labeling is required, please inform us in advance.
Some general maintenance practices for bucket molds include: Regular cleaning: Clean the mold after each use to remove any residual material or debris. Use appropriate cleaning agents and tools to avoid damaging the mold surface. Lubrication: Apply a suitable mold release agent or lubricant to prevent sticking and facilitate smooth ejection of the molded bucket. Make sure to use lubricants compatible with the mold material. Inspections: Regularly inspect the mold for any signs of wear, damage, or buildup. Pay attention to areas such as the ejection system, cooling channels, and critical surfaces.
