Pail Mould

We are specialized in making plastic pail mould, 1L, 1.5L, 2L, 3L, 4L, 5L, 7L, 10L, 12L, 15L, 18L, 20L, 25L pail mould, BeCu for cooling, fine cooling system, full automaticity. With rich experience and good price in making pail moulds.

A. Good thermostability

The mould components are complicated in shapes and it is difficult to processing after quenching. That's why our first choice is the mould with good thermo stability. pail mould can easily become small after heat treatment as for the expansion coefficient is relatively small, the rate of dimensional change will be reduced due to the temperature difference. If the pail mould has a stable structure and dimension, then require no longer processing which can guarantee the mould dimensional accuracy and surface roughness requirements.

B. Sufficient surface hardness and wear resistance

Plastic pail mould hardness is usually within 50-60HRC. The mould surface shall be sufficient in hardness after heat treatment so that the mould can have sufficient rigidity. The mould has to withstand greater compressive stress and friction as for the plastic mold filling and flow in the injection production, it requires the mould must have high shape and dimension stability, so the mould life can be ensured. However, the mould wear resistance depends on the steel chemical composition and heat treatment hardness; therefore to improve the mould hardness is conducive to improve the wear resistance.

C. Good polishing properties

The high quality bucket requires the pail mould cavity surface roughness must be small. For example, the surface roughness of the injection mould cavity should be less Ra0.1~0.25, the optical surface should be Ra<0.1nm, the cavity shall be polished, thereby reducing the surface roughness value. Therefore the bucket mold steel should reach to these requirements: less material impurities, fine homogeneous organization, no fiber directionality, no pitting or defects in polishing.

plastic pail mould
Pail Mould Factory

Pail Bucket Mould

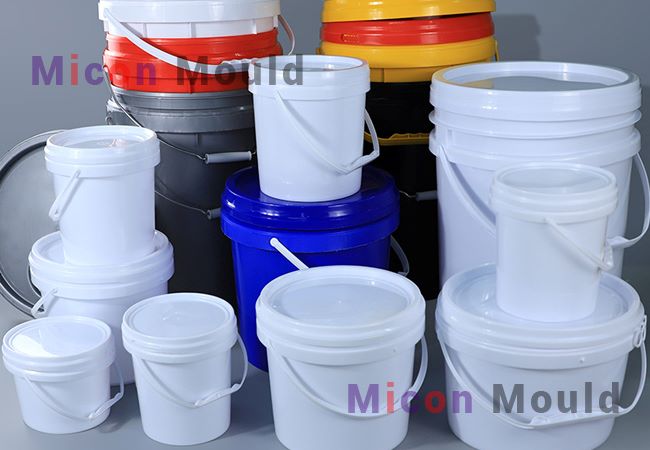

Welcome to customize pail bucket molds from our factory. We have rich experience in pail bucket mold manufacturing and use precision CNC equipment to ensure the precision and accuracy of the molds. The pail bucket wall thickness is uniform and the sealing meets customer requirements. A good cooling system ensures that the production cycle of the mold meets the requirements. At present, pail bucket molds are exported to many countries.

pail mould
pail mould
pail mould
pail mould
plastic pail mould
plastic pail mould
plastic pail mould
plastic pail mould

Get a Quote

Frequently Asked Questions?

Plastic bucket mould is a type of mould used in manufacturing to create plastic buckets. It is a form or shape into which molten plastic material is poured and then allowed to cool and solidify. The mould is typically made of metal, usually mould steel, and consists of two halves that fit together to form the shape of the bucket. When the plastic has cooled and solidified, the mold is opened and the bucket is removed.
The typical lifespan of a bucket mold can vary depending on various factors, including the material used, mold design, production conditions, and maintenance practices. However, a well-constructed and properly maintained steel bucket mold can typically last tens of thousands to hundreds of thousands of cycles. Factors such as material quality, mold design, operating conditions, and regular maintenance play crucial roles in determining the mold’s longevity. Regular inspection, maintenance, and timely repairs or replacements can help maximize the mold’s lifespan.
First, during the mold design process, it is necessary to check the insert, slider, exhaust, gate, shrink, bucket wall thickness, mould structure and other information. Secondly, during the mould manufacture process, check the hardness of the mould material and control the processing tolerance. Thirdly, after the mould trial is successful, check the weight of the bucket and the fit of the bucket cover. Provide customers with a high-quality bucket mould.
Our bucket molds are usually suitable for in mold labeling. If in mold labeling is required, please inform us in advance.
Some general maintenance practices for bucket molds include: Regular cleaning: Clean the mold after each use to remove any residual material or debris. Use appropriate cleaning agents and tools to avoid damaging the mold surface. Lubrication: Apply a suitable mold release agent or lubricant to prevent sticking and facilitate smooth ejection of the molded bucket. Make sure to use lubricants compatible with the mold material. Inspections: Regularly inspect the mold for any signs of wear, damage, or buildup. Pay attention to areas such as the ejection system, cooling channels, and critical surfaces.
